Product Description

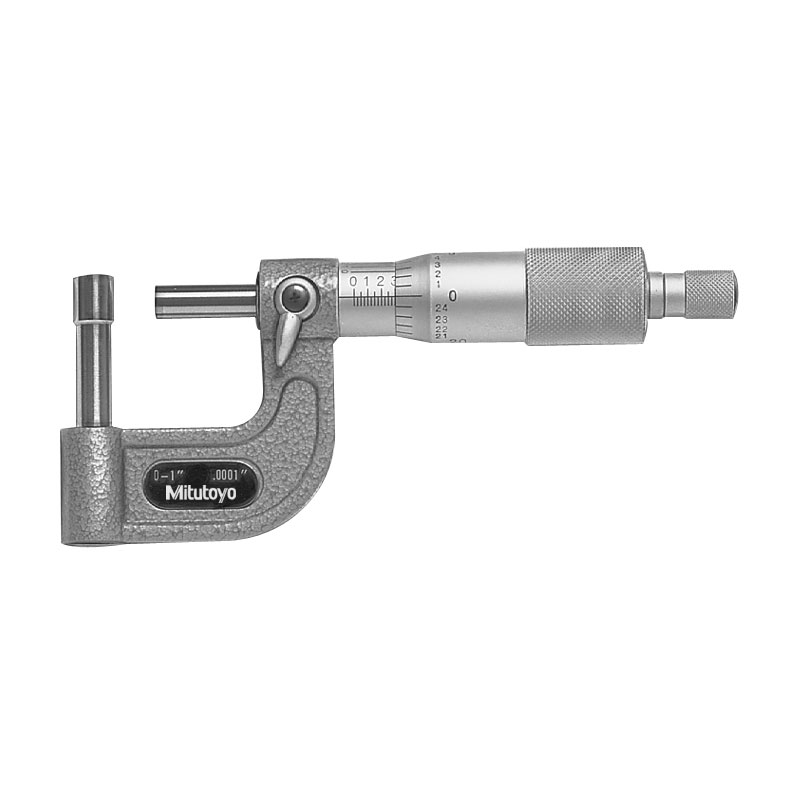

The Mitutoyo 115-314 Mechanical Tube Micrometer has a cylindrical anvil and a flat spindle measuring surface. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. The micrometer has a measurement range of 0-1″, a resolution of 0.0001″, and an accuracy of ±.00015″.
Features
- Available with a pin, spherical, or cylindrical anvil
- Available in Metric and Inch models
- Designed to measure the wall thickness of various tubing
- Carbide measuring surfaces to reduce wear
- Ratchet mechanism provides an audible click to ensure the measurement is at a constant force
- Knurled friction thimbles provide quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser-etched measurements on the thimble for easier reading
- Baked enamel finish frame for durability and a longer lifespan
- Includes a standard bar except for 0-25 mm and 0-1” model
- Supplied in a fitted plastic case
Applications
- Industrial
- Aerospace
- Automotive
- Manufacturing
- Mechanical Engineering
- Machining
- Quality Control
- Construction
- Medicine
Similar Gages (Mechanical)
- Mitutoyo 115-115 Mechanical Tube Micrometer, Flat Spindle, Ratchet Stop, 0-25mm
- Mitutoyo 115-153 Mechanical Tube Micrometer, Flat Spindle, Ratchet Stop, 0-1″
- Mitutoyo 115-215 Mechanical Tube Micrometer, Spherical Spindle, Ratchet Stop, 0-25mm
- Mitutoyo 115-242 Mechanical Tube Micrometer, Spherical Spindle, Ratchet Stop, 1-2″
- Mitutoyo 115-253 Mechanical Tube Micrometer, Spherical Spindle, Ratchet Stop, 0-1″
- Mitutoyo 115-305 Mechanical Tube Micrometer, Cylindrical Anvil, Ratchet Stop, 0-1″
- Mitutoyo 115-313 Mechanical Tube Micrometer, Spherical Anvil, Ratchet Stop, 0-1″
- Mitutoyo 115-314 Mechanical Tube Micrometer, Cylindrical Anvil, Ratchet Stop, 0-1″
